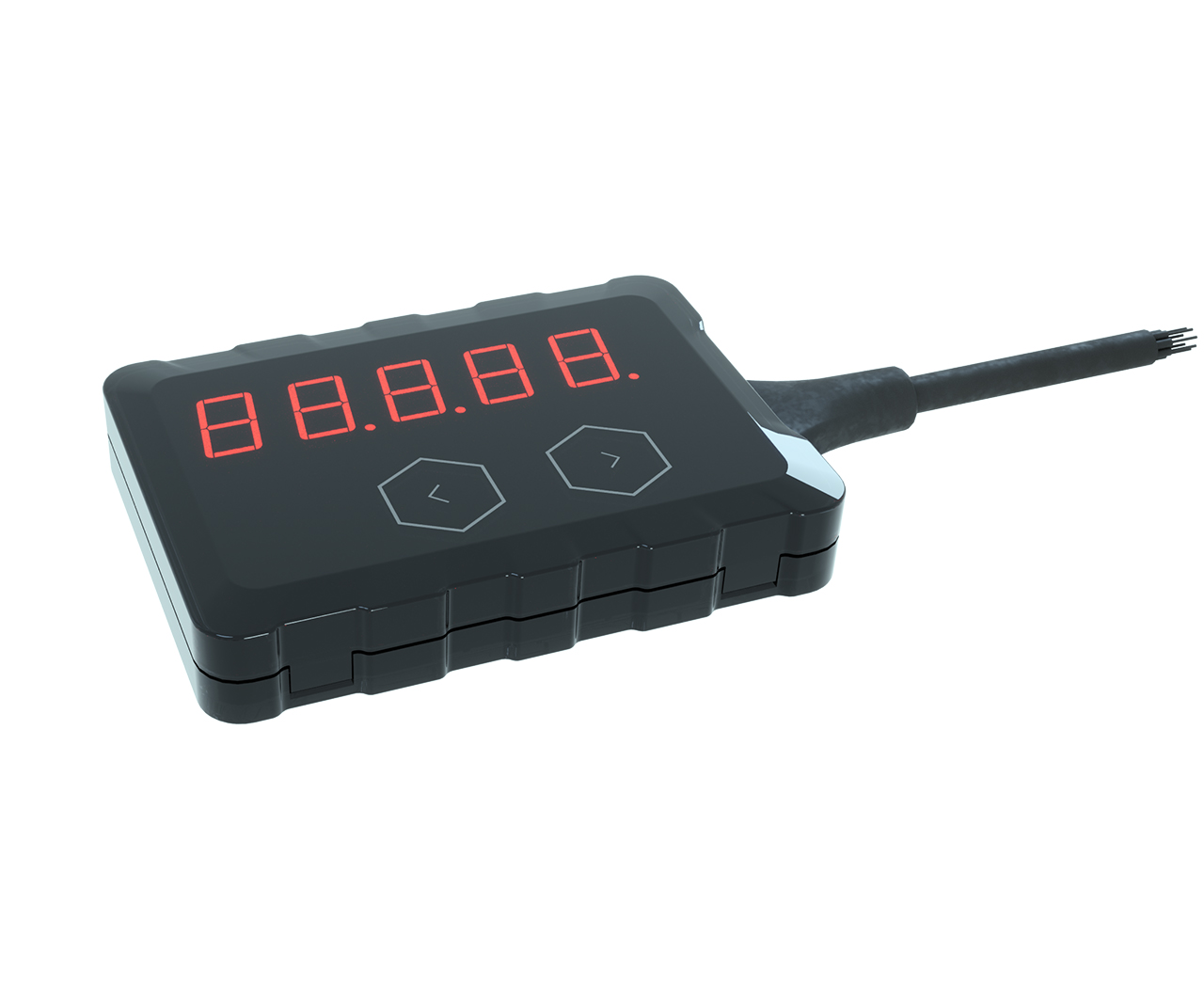

This device can be used as a totalizer, with which you will always know the current fuel volume in the tank, as well as display the average value of 2 or more fuel level sensors.

Using the display with various optional sensors, based on their functionality, it is possible to display such indicators as the current angle of inclination from the DU-BLE sensor, temperature and humidity from the TH-BLE sensor with an accuracy of a tenth of a second.

Advantages:

New, improved case;
RS-232 and BLE interfaces are supported in addition to the usual RS-485
одновременно возможно подключение до 10 датчиков
Up to 10 sensors can be connected at the same time
Displaying up to 10 different screens, ability to switch between them with a simple press of the touch button
Both wired and wireless sensors can be connected to the device
Setting up with a special mobile app

How useful is this device?

Allows you to quickly monitor the actual angle of inclination on special equipment , thereby ensuring safety when working on it.

Minimizes risks when transporting cargo due to the possibility of controlling the temperature in the refrigerator at any time.

Fuel control in the absence of the standard sensor or in case of its failure: on diesel locomotives, stationary tanks.

Improve field processing and increase the crop capacity of the fields.

Technical characteristics

Power supply voltage, V	9 … 36
Power consumption, not more than (mA)	150
1) Wired communication interfaces (for connection with GPS trackers/gateways and wired sensors) 2) Data exchange protocol(s) 3) Data exchange baud rate	1) RS-485, RS-232 2) LLS 3) 19200 bps
1) Wireless sensor/mobile device communication interface(s) 2) Wireless sensor and mobile device communication protocol(s)	1) Bluetooth LE (BLE) 2) ESCORT.i-5
Bluetooth Standard	Bluetooth Low Energy 5 LR coded PHY (central) Bluetooth Low Energy 4 (connection, advertising)
Receiver sensitivity / transmitter power, dBm	-96 / 8
Bluetooth operating frequencies, GHz	2,402-2,480
Max sensors	10
Max LLS network addresses	40
Max number of lines per tank calibration table	50
Max fuel/liquid level, in any measurement units	99999
Ingress protection marking in accordance with ГОСТ (State Standard) 14254	IP65
Electric shock resistance rating in accordance with ГОСТ (State Standard) 12.2.007.0	Class III
Operating conditions: - min and max ambient temperature, °С - extreme min and max ambient temperature, °С - atmosphere pressure, GPa	from - 40 °С to 50 °С from - 45 °С to 55 °С from 84 to 106,7
Dimensions, not more than, mm	400 x 70,5 x 22
Weight, not more than, kg	0,3
