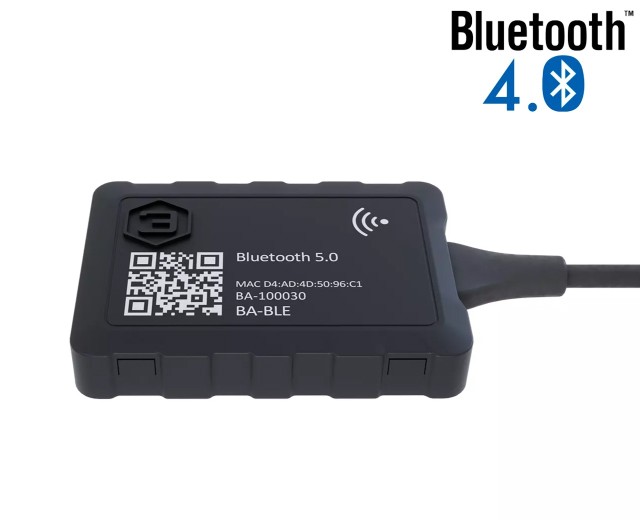

Designed to transmit identification data wirelessly to a mobile device equipped with a BLE interface, or signal receiver BA-BLE 5.0 LR.
What areas can this product be used?
Together with the adapter BA-BLE 5.0 LR wireless tag forms a system of identification "Escort ID-TAG", which is necessary to control the location of an object equipped with a wireless tag, within the range of the signal from the reader.
Controlling operations in agro-industrial complexes with a lot of different equipment is very difficult. The Escort ID - TAG system solves the task of complete control over each unit of trailed and mounted equipment by identifying the type of the hooked implement, its working width, time and place of connection, as well as determining the amount of work performed on the monitored equipment.

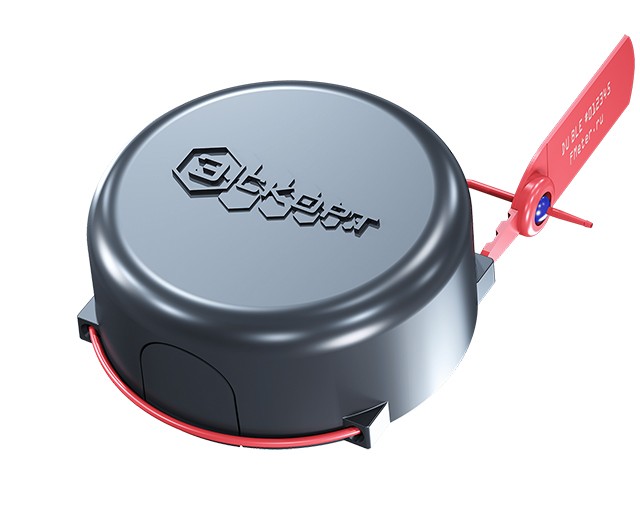

A distinctive feature of the system "Escort ID - TAG", is the absence of connecting wires. Wireless Tag (Escort TAG) is installed on each trailer unit, transmitting over the air its unique number to the reader (BA-BLE 5.0 LR) installed directly on the vehicle. The reader transmits the identification number to the monitoring unit.
| Power supply voltage, VCD | 3 … 3,7 |
| Power supply capacity at 20 °С, mAh | 2600 |
| Radio channel frequency, GHz | 2,402-2,480 |
| Average power consumption for default configuration, μА | 15 |
| Max power consumption, not more than, μА | 15 |
| Data exchange output | Bluetooth LE (BLE) |
| Communication protocol used for Connection or P2P mode (and configuration) | Escort BLE |
| Advertising data packages protocol(s) | IBeacon, Eddystone-UID, Eddystone-URL |
| Operating range (at normal surrounding conditions and in absence of obstacles and/or interferences and with the transmitter’s signal power equal to 0 dBm), m | 190 |
| Operating conditions: 1) ambient temperature, °С 2) atmosphere pressure, kPa |
1) from -45 °С to 50 °С 2) 84 … 106.7 |
| Ingress protection marking | IP69S |
| Dimensions, not more than, mm | 92x87,5x38 |
| Weight, not more than, kg | 0,19 |
